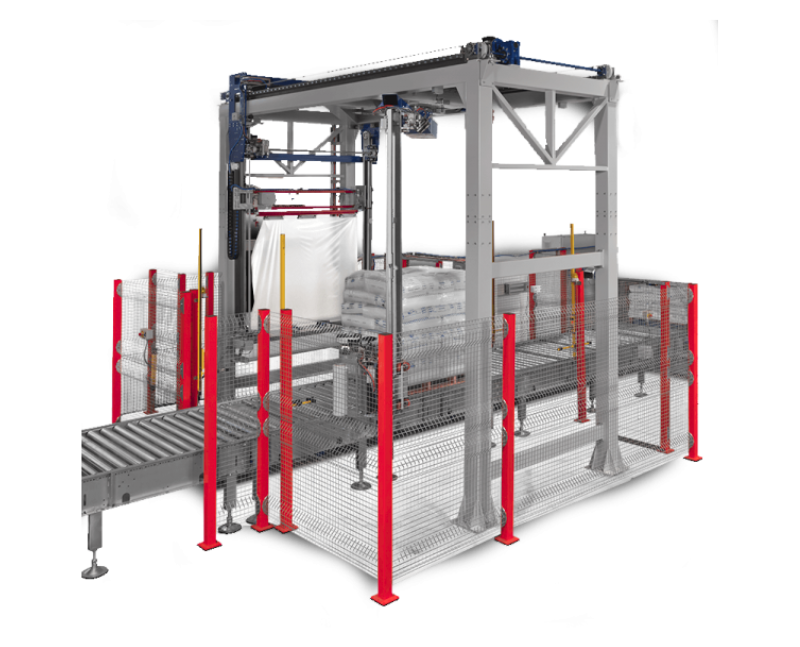

MF 60 WRAP
Rotary Arm Unit

The MF WRAP 60 rotating arm wrapping machine is the fastest automatic wrapping solution for pallets offered by MF TECNO. It must be introduced downstream from a new or existing palletising line.

Designed for heavy duty applications (up to 2000 Kg capacity), it allows fast, compact and reliable wrapping with stretch film.

The rotating arm wrapping system guarantees perfect stabilisation of the palletised load: during the wrapping operation, the pallet remains completely still, while the mechanical arm rotates around and wraps it. This feature makes this solution ideal when the material packaged and palletised is highly unstable.

WATCH VIDEOS
DOWNLAD PDF

FEATURES AND BENEFITS

  • Silent, reliable and strong rotating unit

  • Inverter-controlled adjustable arm rotation speed

  • Adjustable carriage up and down speed controlled by inverter

  • Film tension adjustment

  • Automatic film cut and attachment device

  • Motorised automatic pre-stretch

  • Film sealing

  • Electric control board with touch screen for signalling anomalies

  • Command PLC

  • CE compliant protection

PALLETS & SIZES

PALLET DIMENSIONS

Maximum – 1200 x 1200 X 2000 mm

FILM TYPE

Extensbile film/17-25 microns

PRODUCTION

50 – 60 Pallets Per Hour
