Specialists in Automated Bagging & Palletising Systems

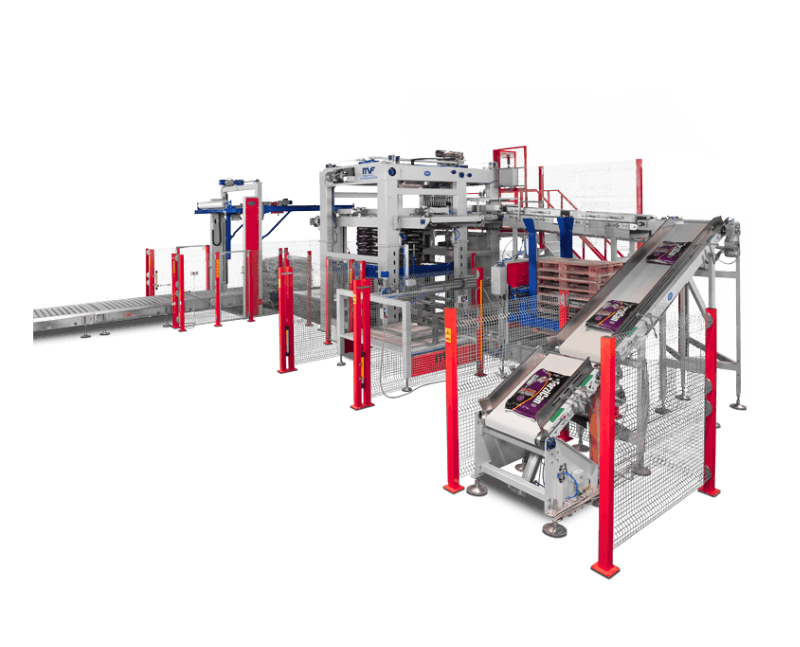

MF PRC 1000 – 6 COLUMN
Automatic Cartesian Palletiser

Robotic palletiser with top loading, based on a structure with 6 load-bearing columns with electro-mechanical pallet lift. It is distinguished by its particular strength, versatility and high production speed.

The precision and flexibility of bag positioning, typical of robots, merges with a compacting capacity and the speed of a traditional “layered” palletiser.

The finished pallet results extremely compact since the bags can be pressed vertically and horizontally.

The use of cutting edge brushless motors and drives make this palletiser fast and reliable. The electronics used allow any type of layer to be made. The simplified and user-friendly management software allow also less expert operators to quickly change the work program, and even change the palletising pattern to adapt it to various needs.

WATCH VIDEOS
DOWNLAD PDF

FEATURES AND BENEFITS

  • Automatically adapts to different formats simply and quickly

  • All of the axes are moved by brushless motors

  • Lateral and vertical presses of the bag layer

  • Possibility of processing 800 x 1200 mm and 1000 x 1200 mm pallets

  • Maximum pallet height 2000 mm

  • Automatic control of the correct operating cycle

  • Integrated security and access control system

  • Fall arrest and anti-collision against gripping system safety device

  • Touch-screen operator panel

  • Self-diagnosis system for anomalies and verification via display

PALLETS & BAGS

DIMENSIONS


PALLETS
Minimum – 800mm x 1200mm
Maximum – 1100mm x 1400mm

BAGS
Minimum – 180mm x 350mm
Maximum – 600mm x 1100mm

PRODUCTION

Up to 1200 Cycles Per Hour

SUITABLE PRODUCT TYPES & SECTORS

Foodstuffs

Packaging plants for foodstuffs, which cover the entire production cycle starting from the raw material up to the pallet of product wrapped and ready to be sent…

READ MORE

Cereals & Seeds

Wide range of semi and automatic weighing machines, bagging machines, packaging machines, palletisers and wrappers for cereals and seeds of all types…

READ MORE

Chemicals

Complete turnkey packaging machinery for chemicals, weighing machines, bagging machines, packaging machines, palletisers and wrappers for all products types…

READ MORE

Fuels

Bulk Automation UK offer a wide range of automatic weighing, bagging and packaging machines, palletisers and wrappers for a range of heating fuels…

READ MORE

Animal Feed

Animal feed weighing machines, bagging machines, packaging machines, palletisers and wrappers for animal feed, pet food and fish food type products…

READ MORE

Pet Food

Pet food packaging solutions, weighing, bagging machines, packaging machines, palletisers and wrappers for pet-food products of all types, weights and sizes…

READ MORE

Forestry

Packaging plant systems for forestry products, wood chips, shavings, bark, compost, mulch, soil, peat moss and saw-dust, entire production cycle solutions…

READ MORE

Minerals

Entire production cycle solutions, automatic bagging and packaging machines for minerals, cement, clay, sand, gravel and more, palletising and wrapping…

READ MORE

Cat Litter

Semi and automatic and weighing, bagging and packaginging machines, end of line palletising, turntable and shuttles systems for cat litters and other products…

READ MORE
